• LT245/75R16E all-season BSW tires
• 60/40 hinged side cargo door
• 16" x 7" steel wheels w/full sport wheel covers
• Full-size spare tire
• Front/rear black bumpers
• Painted grille
• Dual sealed-beam headlights
• Telescopic trailer tow mirrors w/manually adjustable spotter lens
• Solar tinted glass
• Interval windshield wipers

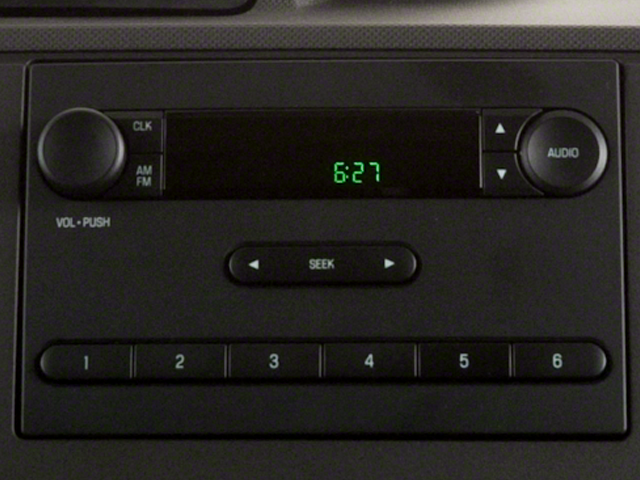

• AM/FM stereo -inc: (2) speakers, digital clock, audio input jack

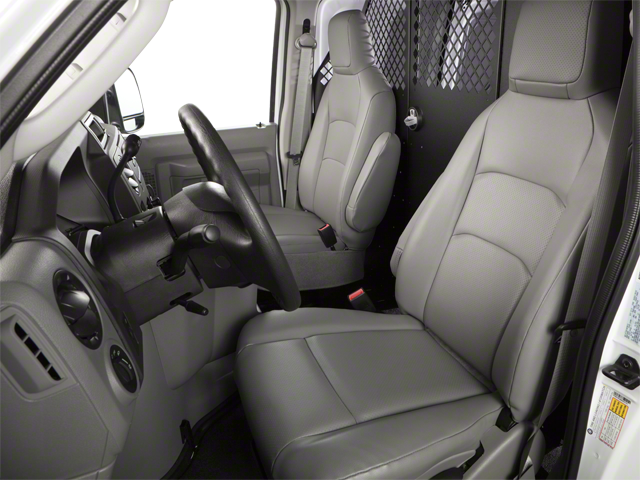

• Dual bucket seats (REQ: AE or CE Seat Trim)
• Front air conditioning
• Inboard armrest on front seats
• Front vinyl floor covering
• Black plastic stepwell pads

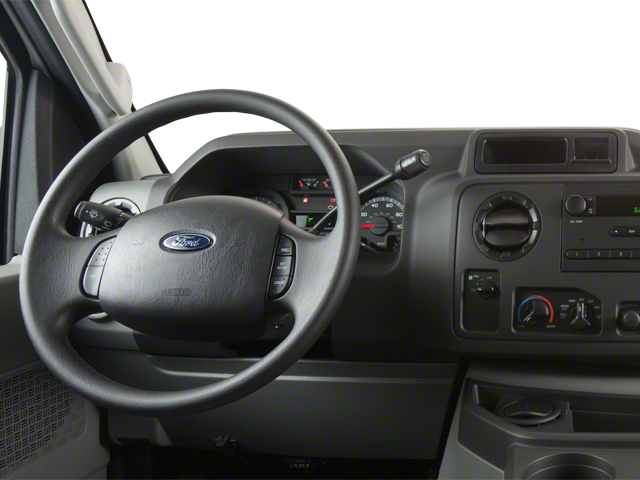

• Tilt steering column

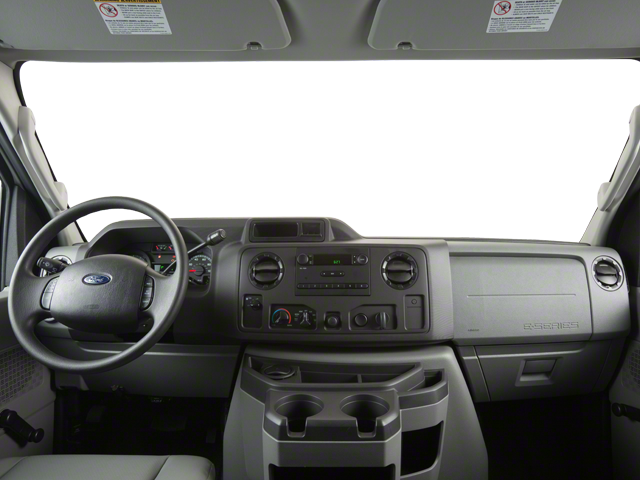

• Medium dark flint-color instrument panel -inc: tachometer

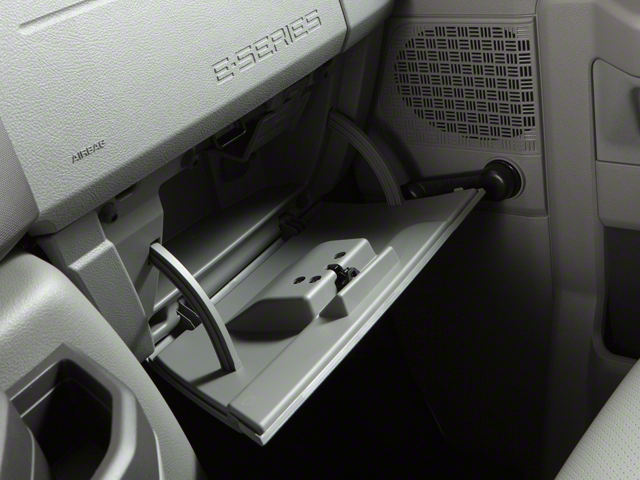

• Glove box w/aux pwr point
• Dual 12-volt pwr points in instrument panel
• LH/RH black cowl trim panels
• Front vinyl headliner
• Medium flint-color trimmed vinyl sun visors
• Driver & front passenger A-pillar interior grab handle
• Lights-inc: front dome, rear cargo
• Courtesy light switches on all doors

• Advance Trac w/Roll Stability Control (RSC)
• Driver & front passenger second generation airbags
• Tire pressure monitoring system
• Electric dual note horn

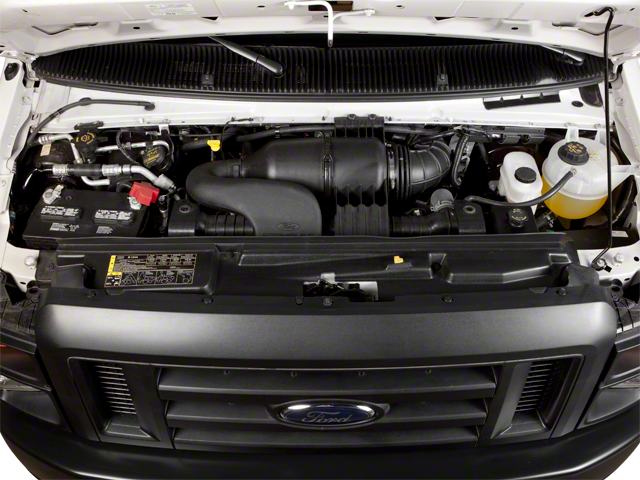

4.6L SOHC EFI FLEX FUEL V8 ENGINE

• (STD)

• 4.10 Axle Ratio
• GVWR: 8,900 lb Payload Package
• 16" x 7" Steel Wheels
• Radio: ETR AM/FM Stereo w/Single Disc CD
• Inside Rear-View Mirror
• 16" Sport Wheel Covers
• 4-Wheel Disc Brakes

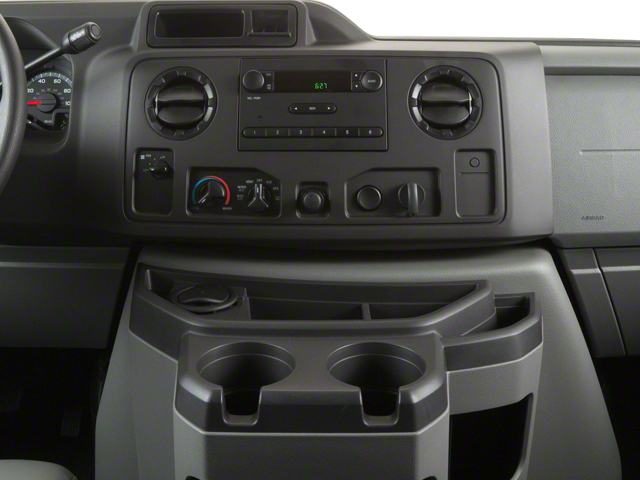

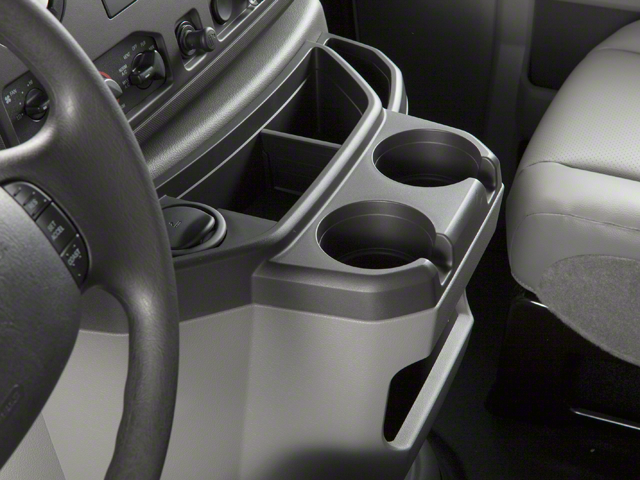

• Front beverage holders
• Variably intermittent wipers
• Traction control
• Tilt steering wheel
• Power steering
• Passenger door bin
• Low tire pressure warning
• Front wheel independent suspension
• Front anti-roll bar
• Dual front impact airbags

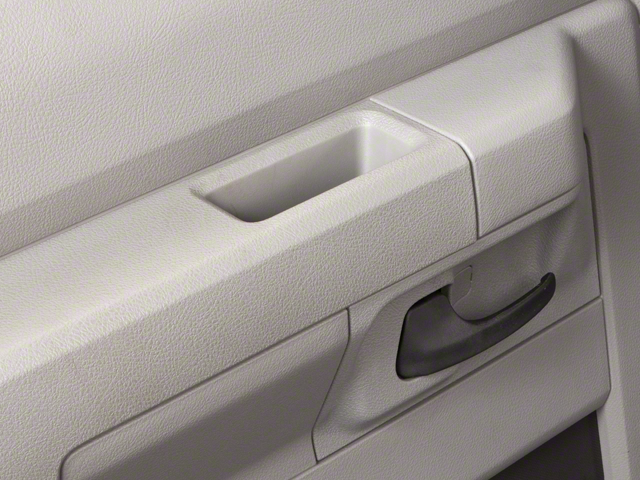

• Driver door bin
• AM/FM radio
• ABS brakes
• Voltmeter
• Tachometer
• Electronic Stability Control
• Air Conditioning

• Vehicle
• Rear Door Type: Dual
• Mileage
• Fuel Economy Est-Combined (MPG): 15
• EPA Fuel Economy Est - City (MPG): 13
• EPA Fuel Economy Est - Hwy (MPG): 17
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 120
• Maximum Alternator Watts: 1620
• Cooling System
• Total Cooling System Capacity (qts): 25.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3750
• Gross Axle Wt Rating - Rear (lbs): 5520
• Curb Weight - Front (lbs): 2896
• Curb Weight - Rear (lbs): 2334
• Gross Vehicle Weight Rating Cap (lbs): 8900
• Gross Combined Wt Rating (lbs): 11500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 900
• Suspension
• Suspension Type - Front: - TBD -
• Suspension Type - Rear: - TBD -
• Spring Capacity - Front (lbs): 3850
• Spring Capacity - Rear (lbs): 5520
• Axle Type - Front: Twin I-Beam
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 5000
• Axle Capacity - Rear (lbs): 5520
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Stabilizer Bar Diameter - Front (in): 1.0
• Brakes
• Brake Type: Power
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.6 x - TBD -
• Rear Brake Rotor Diam x Thickness (in): 13.6 x - TBD -
• Tires
• Front Tire Order Code: T38
• Rear Tire Order Code: T38
• Spare Tire Order Code: - TBD -
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 3042
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): 3042
• Revolutions/Mile @ 45 mph - Front: 677
• Revolutions/Mile @ 45 mph - Rear: 677
• Revolutions/Mile @ 45 mph - Spare: 677
• Wheels
• Front Wheel Size (in): 16 x 7.0
• Rear Wheel Size (in): 16 x 7.0
• Spare Wheel Size (in): 16 x 7.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.0
• Turning Diameter - Curb to Curb (ft): 48.6
• Turning Diameter - Wall to Wall (ft): 50.1
• Frame
• Frame Type: Single Channel
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 33.0
• Fuel Tank Location: Midship
• Doors
• Side Door Type: RH Dual Hinged
• Exterior Dimensions
• Wheelbase (in): 138.0
• Length, Overall w/rear bumper (in): 216.7
• Width, Max w/o mirrors (in): 79.4
• Height, Overall (in): 84.8
• Overhang, Front (in): 34.9
• Overhang, Rear w/bumper (in): 43.8
• Ground to Top of Load Floor (in): 31.1
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Rear Door Opening Height (in): 49.5
• Rear Door Opening Width (in): 53.9
• Side Door Opening Height (in): 48.2
• Side Door Opening Width (in): 44.8
• Step Up Height - Front (in): - TBD -
• Step Up Height - Side (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 138.7
• Cargo Area Length @ Floor to Seat 1 (in): 122.4
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 52.5
• Cargo Box (Area) Height (in): 28.0
• Cargo Volume (ft³): 237.8
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 42.0
• Front Leg Room (in): 40.0
• Front Shoulder Room (in): 68.1
• Front Hip Room (in): 65.5
• Summary

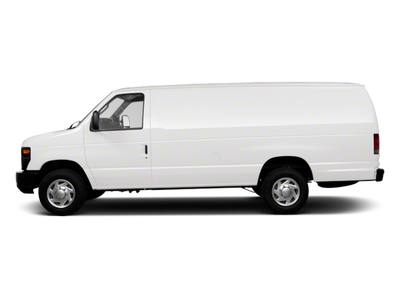

• Vehicle Name: Ford Econoline Cargo Van
• Body Style: E-250
• Body Code: 138
• Emissions
• EPA Greenhouse Gas Score: 3
• Tons/yr of CO2 Emissions @ 15K mi/year: 12.2
